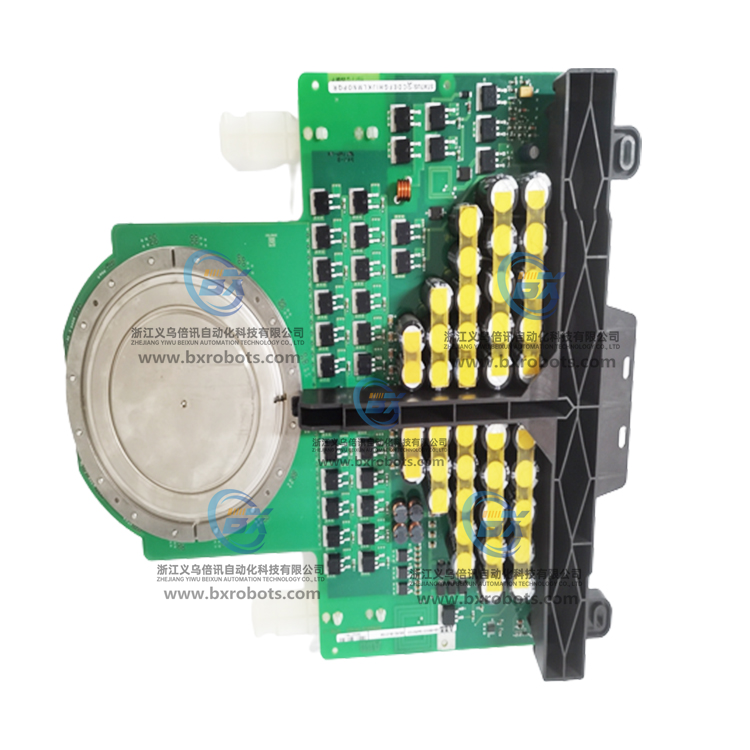

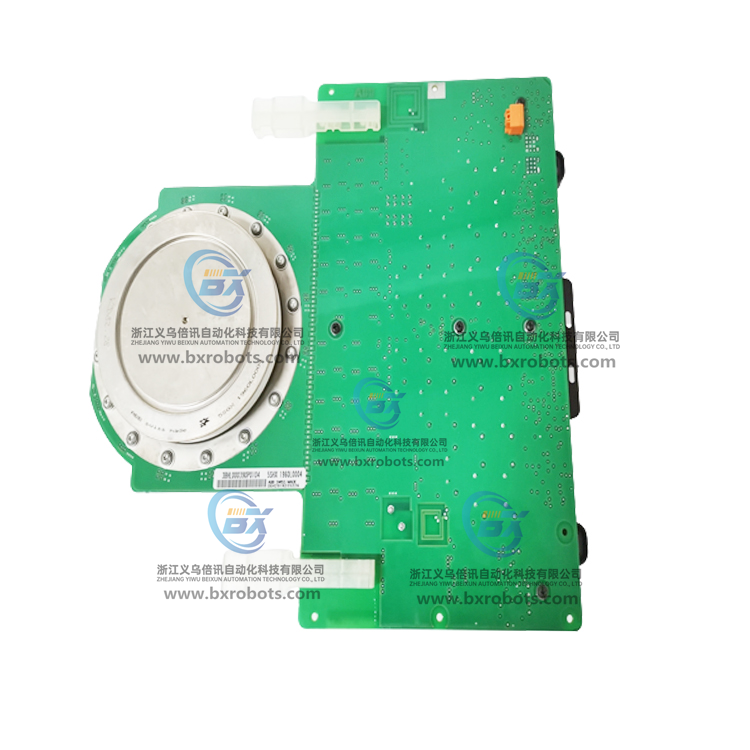

5SHX0360D0001 可控硅晶闸管模块

5SHX0360D0001  ABB自动化产品提供良好的解决方案，适用不同职业和多种使用，包含:水处理、楼宇操控、可再生能源、工厂自动化、资料处理、船舶等职业与使用。

5SHX0360D0001 ABB automation products provide high-quality solutions for different occupations and a variety of uses, including: water treatment, building control, renewable energy, factory automation, data processing, marine and other occupations and uses.

5SHX0360D0001可控硅分单向可控硅和双向可控硅两种。双向可控硅也叫三端双向可控硅，简称TRIAC。双向可控硅在结构上相当于两个单向可控硅反向连接，这种可控硅具有双向导通功能。其通断状态由控制极G决定。在控制极G上加正脉冲(或负脉冲)可使其正向(或反向)导通。

5SHX0360D0001 Thyristors are divided into two types: unidirectional thyristors and bi-directional thyristors. Bidirectional thyristors are also called triacs, or TRIACs for short. bi-directional thyristors are structurally equivalent to two unidirectional thyristors connected in reverse, and this type of thyristor has a bi-directional conduction function. The on/off state is determined by the control pole G. A positive pulse is applied to the control pole G. In the control pole G plus a positive pulse (or negative pulse) can make its positive (or reverse) conduction.

5SHX0360D0001 在材料上，以硅单晶为基本材料P1N1P2N2四层三端器件.半导体器件。因为它的特性类似干直空闸流管，所以国际上通称为硅晶体闸流管,简称晶闸管,又因为晶闸管一开始的在静止整流方面，所以又被称之为硅可控整流元件，简称为可控硅SCR。

5SHX0360D0001  In terms of material, silicon single crystal is used as the basic material P1N1P2N2 four-layer three-terminal device . Semiconductor devices. Because of its characteristics similar to the dry straight empty gate current tube, so the international commonly known as silicon crystal gate current tube, referred to as thyristor, and because the thyristor at the beginning of the static rectifier, so it is also known as silicon controllable rectifier components, referred to as silicon controlled SCR.
